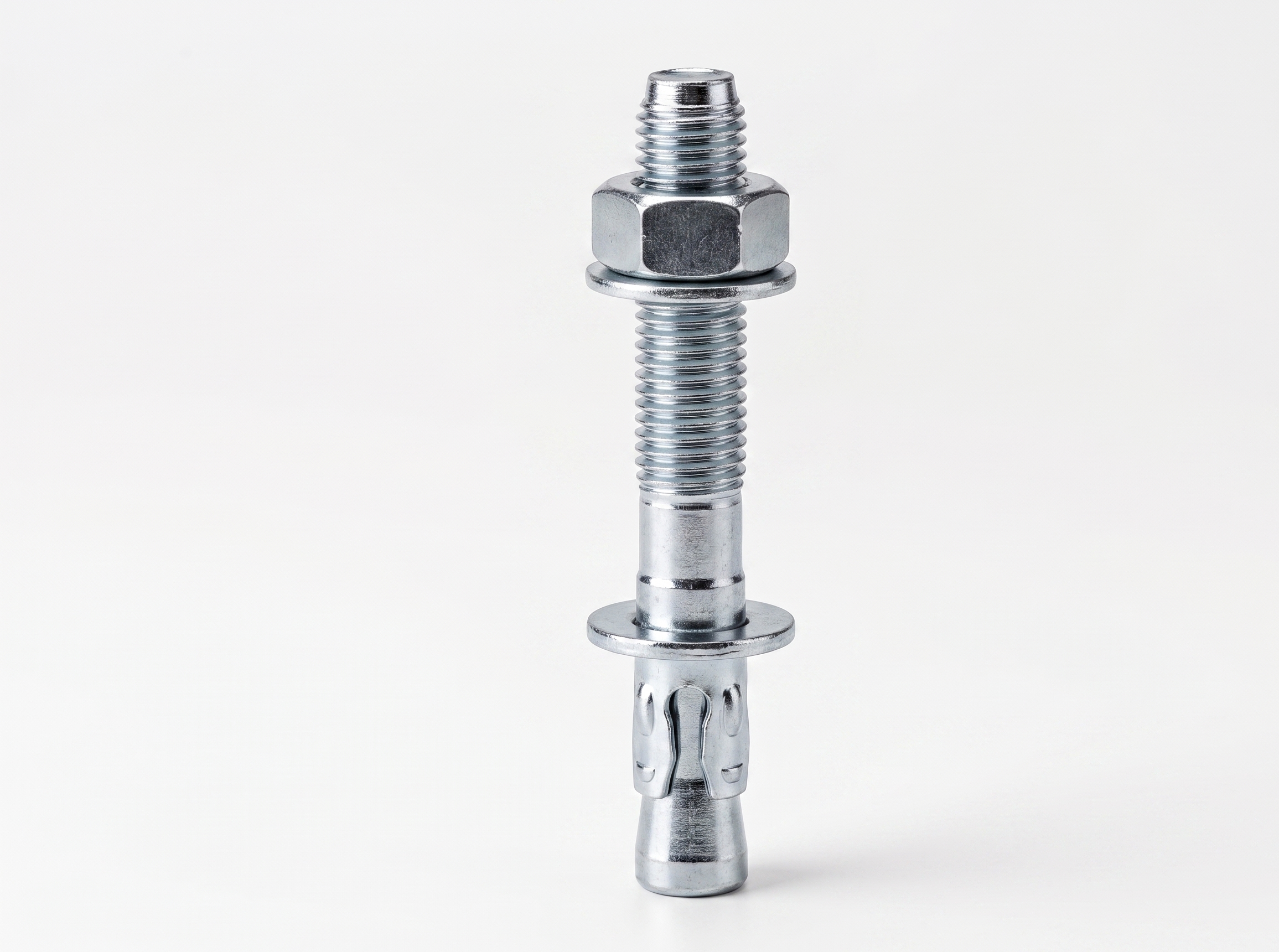

Wedge Anchor / Through Bolt
A heavy-duty mechanical anchor for permanent high-load fastening into solid concrete. Expansion under the base material delivers outstanding tensile and shear capacity.
FEATURES
- Mechanical expansion provides high pull-out resistance
- Suitable for permanent, non-removable installations
- ETA-approved versions available for structural applications
| Field | Details |
|---|
| Head Type |
Hex Nut / Hex Flange |
| Thread Type |
Metric Thread (M8 – M24) |
| Drive Type |
Torque Wrench / Socket Set |
| Sizes |
M8 – M24 | Length: 65mm – 350mm |
MATERIAL OPTIONS
- Carbon Steel (Zinc Plated)
- Stainless Steel — Grade 304 / 316
- HDG
APPLICATIONS
- Structural steel column base plates
- Heavy machinery and equipment anchoring
- Concrete floor and wall bracket fixing
