Rivets & Inserts
Pop Rivet (Blind Rivet)
- One-sided installation — no access required to reverse side
- Mandrel-break provides consistent clamping force
- Available in open end and closed end (waterproof) styles
- Sizes: 2.4mm – 6.4mm dia | Length: 6mm – 38mm
Rivet Nut / Insert Nut
- Creates load-bearing threaded connection in thin material
- Installed with a rivet nut tool - no welding required
- Available in round and hex body types for anti-rotation
- Sizes: M3 – M16 | Body Length: 8mm – 28mm

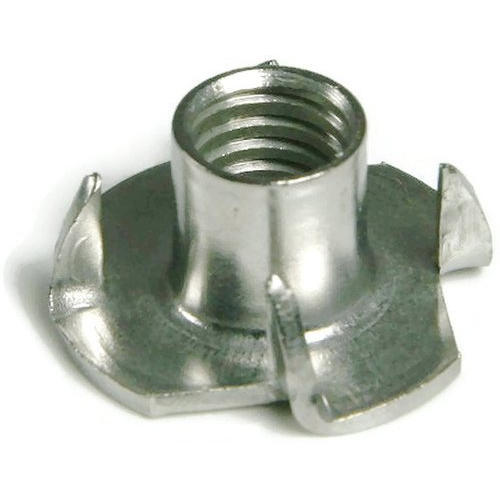

T-Nut
- Pronged flange anchors securely into wood grain
- Provides a strong threaded insert in non-metallic materials
- Flush or countersunk installation for clean finish
- Sizes: M4 – M12 | Barrel: 7mm – 20mm

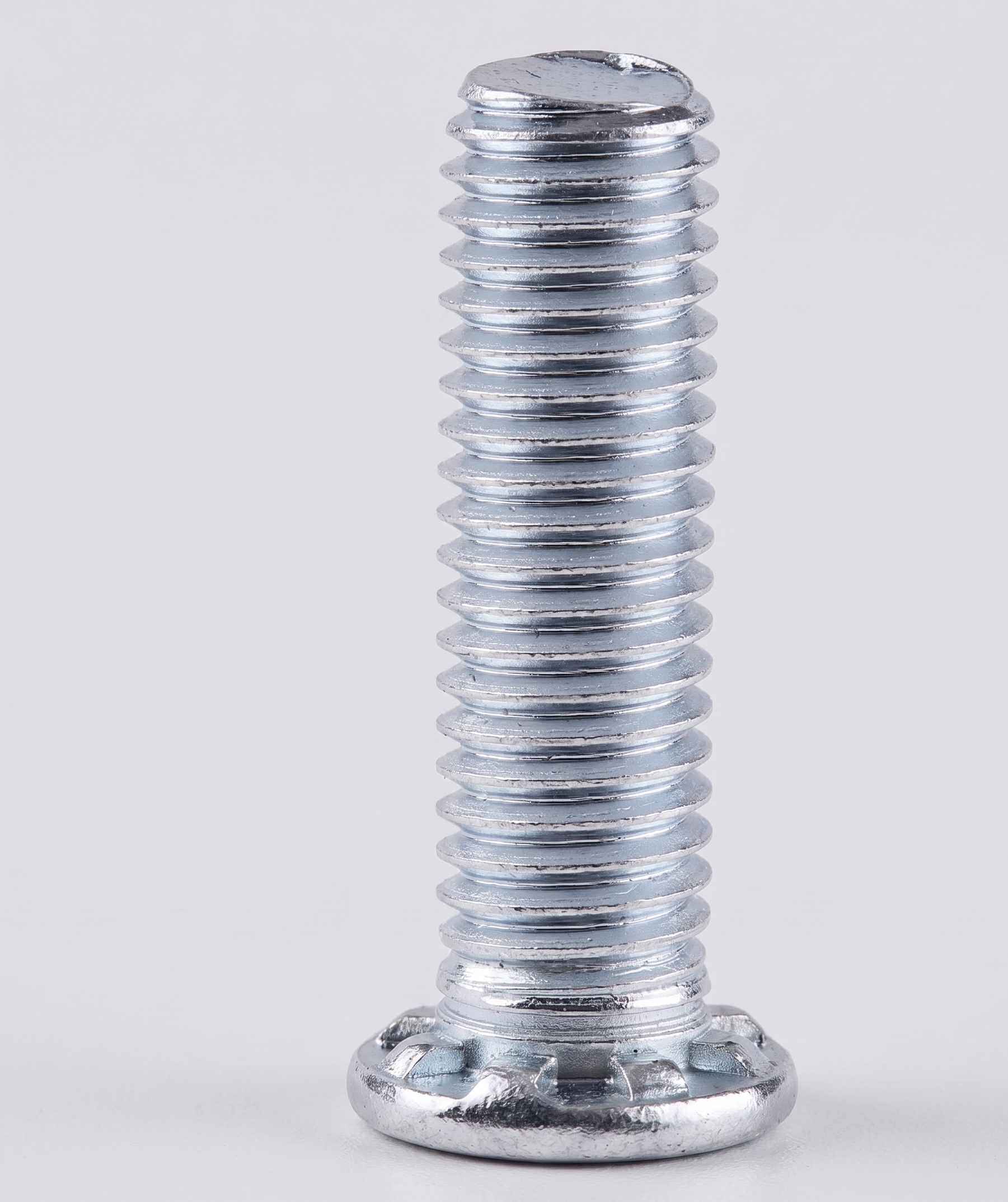

Clinch Stud
- Permanent installation with no heat or adhesive required
- Undercut shank prevents pull-through under load
- Flush panel surface maintained after installation
- Sizes: M3 – M10 | Panel Thickness: 0.9mm – 3.2mm

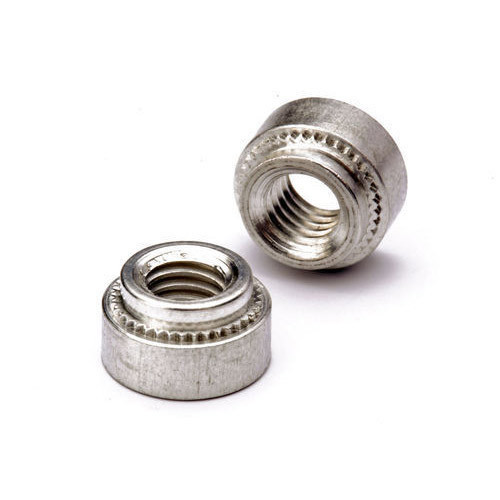

Clinch Nut
- Anti-rotation serrations prevent loosening under vibration
- Flush or low-profile installation in thin sheet metal
- Reusable thread for repeated assembly cycles
- Sizes: M3 – M12 | Panel Thickness: 0.9mm – 3.2mm
D-Nut (Wood Insert Nut / Threaded Insert)
- External coarse thread for strong grip in wood, MDF, and particle board
- Internal hex socket (Allen key drive) for easy installation
- Flanged top prevents over-insertion and provides a flush or countersunk finish
- Zinc plated finish for corrosion resistance

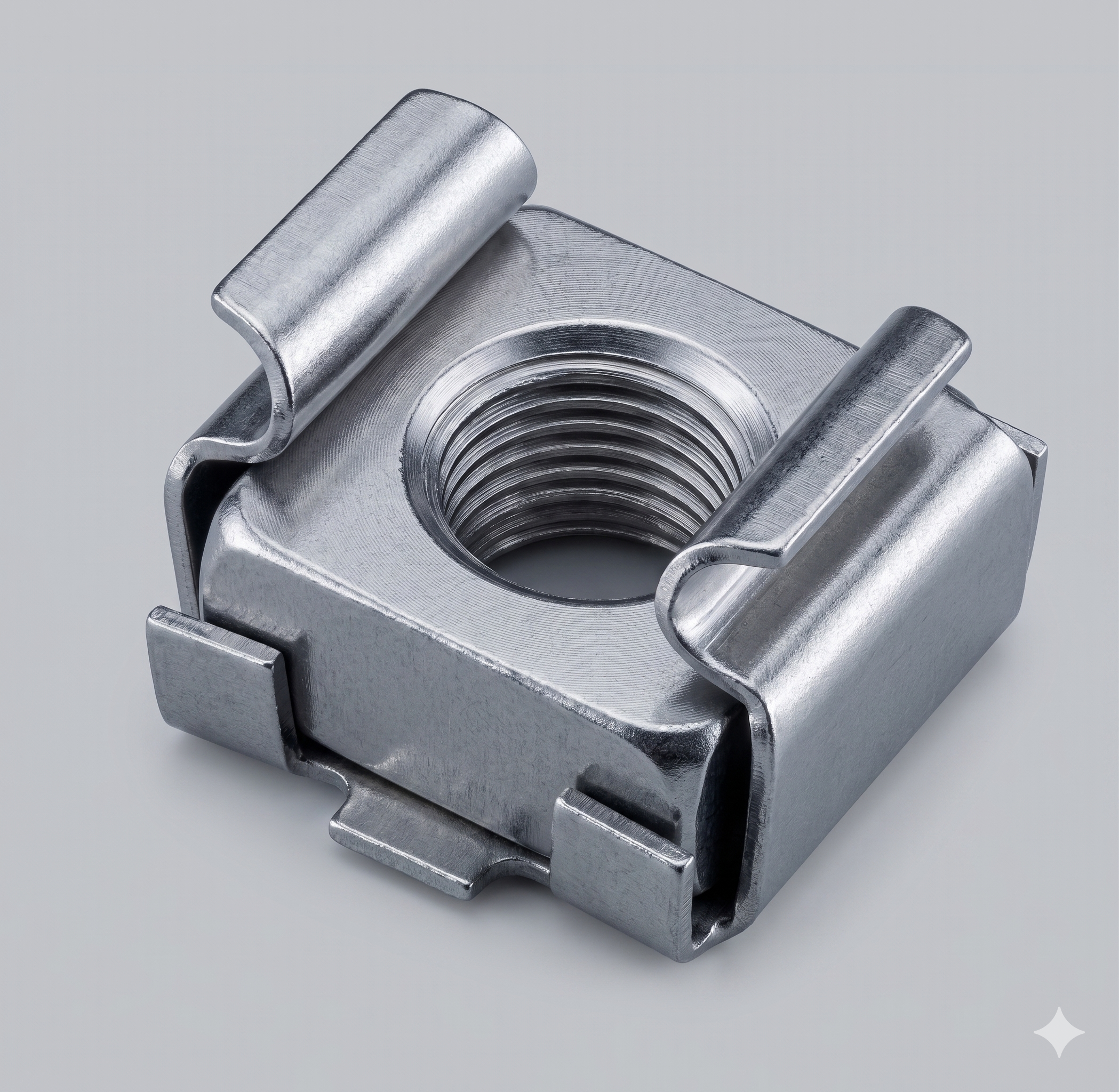

Cage Nut
- Snap-in installation — no tools required for insertion
- Floating nut accommodates minor hole misalignment
- Standard mounting for server racks and data cabinets
- Sizes: M4 – M6 | Cage: 7mm – 15mm sq
Bharat Industrial Fasteners offers a comprehensive range of industrial screws engineered for precision, durability, and performance. Our fastening solutions cover all industrial applications from structural construction fasteners to furniture assembly. Available in stainless steel screws, mild steel, and zinc-plated finishes to meet the most demanding environments.
